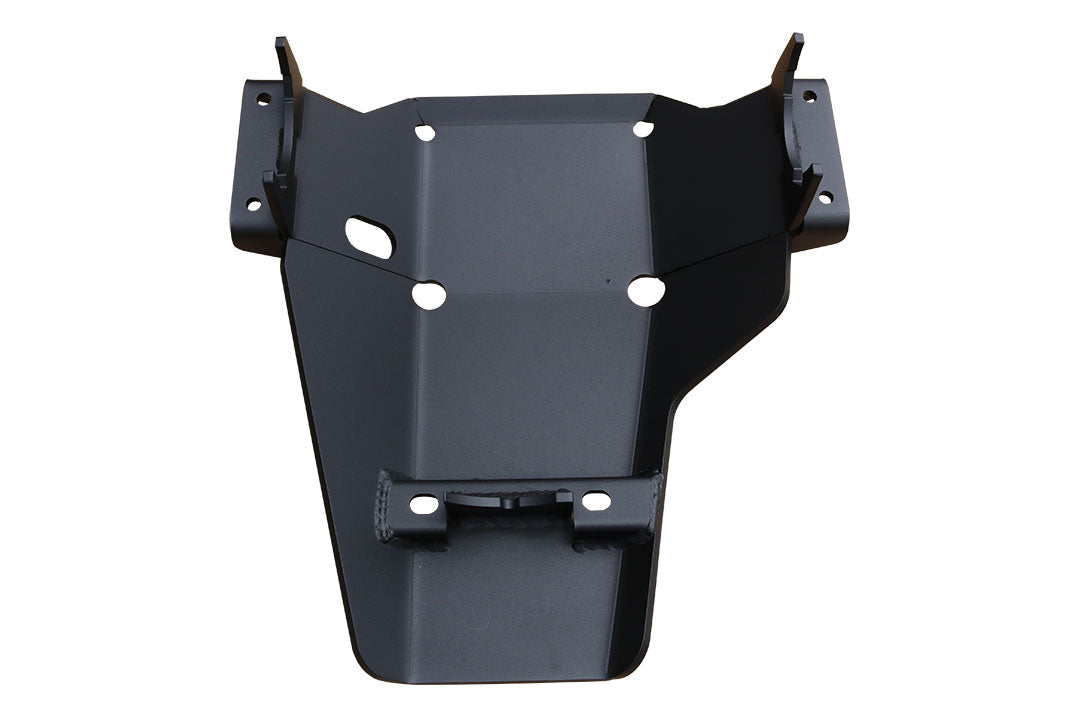

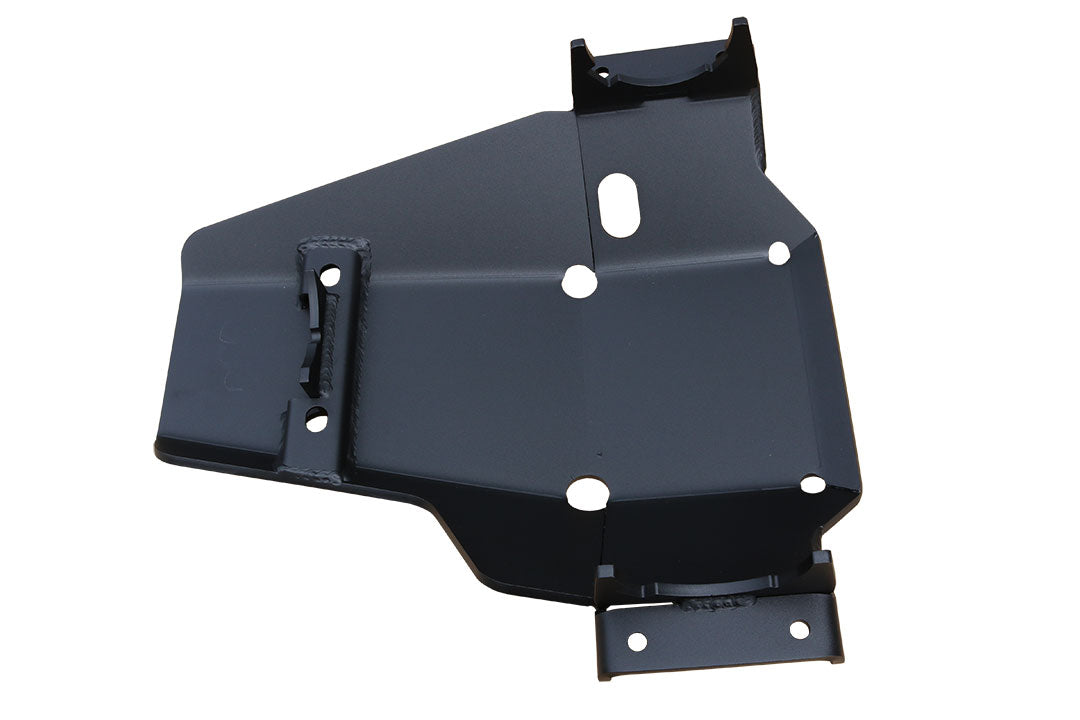

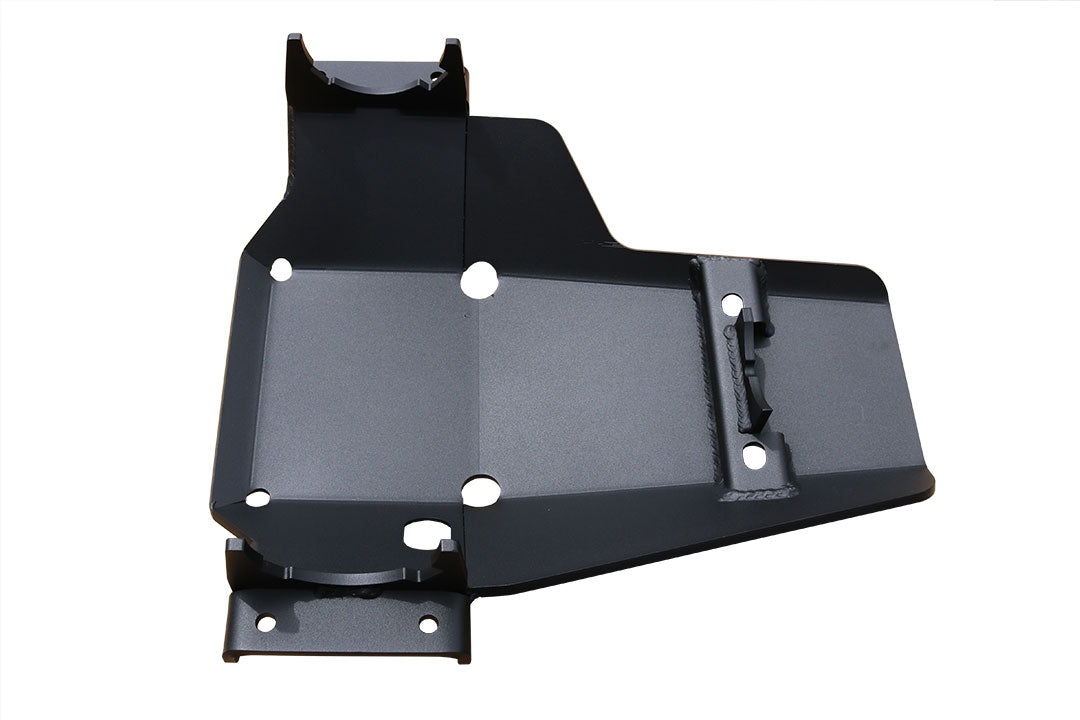

DIFFERENTIAL SKID PLATE - SPRINTER (2015+ 2500 ONLY) by VAN COMPASS
DIFFERENTIAL SKID PLATE - SPRINTER (2015+ 2500 ONLY) by VAN COMPASS
SKU:3023
Couldn't load pickup availability
**NOW COMPATIBLE WITH S&B 45 & 47 GALLON FUEL TANK**
Add protection and peace of mind while exploring in the back country with the Van Compass rear differential skid plate. Loss of gear oil due to a cracked housing or leaking cover can be catastrophic to the rear differential. This skid plate protects the driveshaft u-joints, cast iron differential center section and lower portion of the thin sheet metal differential cover. Constructed from 1/4" thick steel and powder coated for corrosion resistance to provide a strong, smooth surface to slide over obstacles on the trail. The skid system bolts on in minutes with simple hand tools. Gear oil changes can still easily be performed without skid plate removal.
**WORKS ON 2WD AND 4WD VANS, COMPATIBLE WITH 2500 MODELS ONLY**
Included Components
- 1/4" Steel Differential skid plate
- Black Powder Coat finish for corrosion protection
- All necessary hardware
Videos
Instructions
INCLUDED COMPONENTS
- 3/16" Steel Differential Skid Plate
- Mounting Hardware
FITMENT GUIDE
INSTRUCTIONS
Sprinter 2500 differential skid plate installation instructions:
LABOR TIMES
Very solid and fits perfectly. U bolts were a little tricky to get on and was a 2 person job but otherwise very happy.
Solid product. Need a little persuasion to get the big U bolt to sit right. Bulletproof the rear differential. Used hydraulic jack to hold of the plate to make install less than 30 mins.
Easy to just slid under the van and bolt on. Took a few adjustments to get everything aligned .
Driveway install on a floor jack. Lifted into place and most of the hardware installed without issue. Tightening down the forward u-bolt would pinch the socket and prevents easy, even torque build up. So, I torqued down the front driver bolt first and finished up the others. Less than an hour.
Installed on a 2019 VS30 4wd 2500, both access holes for the front U-Bolt are offset to the passenger side so it was near impossible to get a socket on the front U-Bolt nuts. After spending way too long, prying, banging and cussing, I was able to get the U-Boltsnuts installed and tightened down.
May have been a manufacturing defect but should be addressed before shipping any more of these.
